MC-G1600QC-V 16MP GigE Global Shutter Camera: Selection Guide for High-Precision Machine Vision
Choosing a 16MP GigE industrial camera for high-precision machine vision is not only about resolution. For applications with moving parts—pick-and-place verification, conveyor inspection, robotics guidance, or motion analysis—global shutter performance, stable GigE Vision streaming, and reliable SDK integration matter just as much as megapixel count.
This guide focuses on the Comst Vision MC-G1600QC-V, a 16-megapixel GigE camera designed for demanding industrial imaging. It combines catalog-verified specifications from Comst product documentation with practical selection advice aligned with our existing Industrial Camera Selection Guide.
Why MC-G1600QC-V for High-Precision Applications?
The MC-G1600QC-V belongs to Comst Vision's G Series GigE interface camera family. Based on product datasheet and catalog data, it targets engineers who need:
- 16MP resolution with square 4112 × 4112 pixels for large field-of-view inspection
- Global shutter to eliminate motion blur on fast-moving targets
- 4/3" CMOS sensor with 3.5 µm pixel size for balanced sensitivity and detail
- GigE Vision V1.2 / GenICam compliance for standard machine vision software integration
- 100 m cable reach with stable gigabit transmission—ideal for factory floor layout flexibility

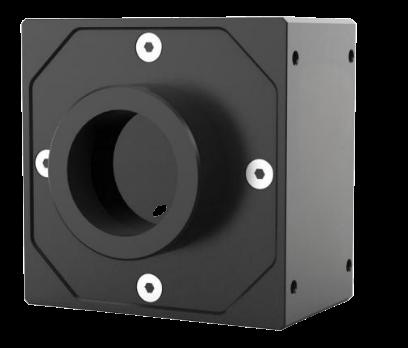

Figure 1 — MC-G1600QC-V: 16MP GigE global shutter camera for industrial machine vision (Comst Vision product documentation).
MC-G1600QC-V Key Specifications
The following table summarizes verified technical data from the MC-G1600QC-V product datasheet:
| Parameter | MC-G1600QC-V |
|---|---|
| Model | MC-G1600QC-V |
| Resolution | 4112 × 4112 (16 MP) |
| Sensor | 4/3" CMOS |
| Pixel Size | 3.5 µm × 3.5 µm |
| Shutter | Global shutter |
| Frame Rate | 4112 × 4112 @ 7.25 fps |
| Color Mode | Color / Monochrome |
| Video Format | Bayer8, Bayer12, Mono8, Mono12 |
| Exposure Range | 0.0327 – 548614.9 ms |
| Interface | RJ45 GigE (1000 Mbps, 100 m stable transmission) |
| Vision Standard | GigE Vision V1.2, GenICam |
| Lens Mount | C-mount |
| Power Supply | DC 9–12 V |
| SDK / OS | Windows, Linux, macOS; C/C++, C#, VB.NET, Python, Halcon, LabVIEW |
| Trigger Modes | Continuous / Software trigger / Hardware trigger |
MC-G1600QC-V vs MC-G1600C: Which 16MP GigE Model Fits Your Project?
Comst Vision also offers the MC-G1600C in our GigE camera series. Both are 16MP GigE industrial cameras, but they serve different motion-imaging requirements:
| Feature | MC-G1600QC-V | MC-G1600C (on-site model) |
|---|---|---|
| Max Resolution | 4112 × 4112 | 4608 × 3456 |
| Sensor Format | 4/3" CMOS | 1/2.3" CMOS |
| Pixel Size | 3.5 µm | 1.34 µm |
| Shutter Type | Global shutter | Rolling shutter |
| Best For | Moving objects, robotics, motion analysis | Static or slow-moving high-detail inspection |
Rule of thumb: choose MC-G1600QC-V when target motion or line speed would cause distortion with rolling shutter. Choose MC-G1600C when you need maximum pixel density on largely static scenes.
Figure 2 — Comst Vision GigE Vision camera lineup supports multi-camera networking for production lines.
Power, Trigger and Cabling for Stable Deployment
Reliable machine vision starts at the I/O layer. The MC-G1600QC-V provides dedicated power and trigger interfaces alongside the RJ45 GigE port—supporting hardware trigger, strobe output, and GPIO for tight integration with PLCs and motion controllers.
Figure 3 — MC-G1600QC-V connector layout: 12 V power input, trigger IN/OUT and GigE RJ45 interface.
For long-distance installs, pair the camera with Comst high flexible GigE cables rated for industrial flex life and screw-lock retention:
Figure 4 — High flexible shielded GigE cable for stable gigabit transmission up to 100 meters.
Recommended Applications
- Electronics & PCB inspection — capture fine solder joints and components without motion artifacts
- Automated optical inspection (AOI) — global shutter ensures consistent frames on moving panels
- Robotics & pick-and-place guidance — GenICam-compatible SDK simplifies multi-camera setups
- Metrology & dimensional measurement — 16MP detail with 4/3" sensor format supports precision lenses
- Medical device & laboratory imaging — stable color processing with manual/auto white balance
Integration with Comst Vision Ecosystem
MC-G1600QC-V shares the same platform advantages documented across our GigE Vision Camera range:
- Unique video image processing for realistic color and low noise
- Unlimited multi-camera operation over standard Ethernet
- Customizable SDK for Windows, Linux and macOS
- White balance lock memory for consistent batch inspection
Explore related models in our catalog—including global shutter options from 0.3MP to 12MP—or compare interface types in our camera selection guide.
How to Request MC-G1600QC-V Samples or Project Support
Comst Vision provides pre-sales lens matching, SDK integration support, and OEM customization. For MC-G1600QC-V quotations, sample requests, or trigger/lighting design review:
- Browse the full GigE camera series
- View the on-site related model MC-G1600C
- Contact Comst Vision with your resolution, frame rate, and working distance requirements
Summary: For engineers searching a 16MP global shutter GigE industrial camera, the MC-G1600QC-V delivers proven GenICam compatibility, factory-grade triggering, and Comst Vision's long-distance gigabit imaging platform—making it a strong SEO-relevant choice for high-precision machine vision projects worldwide.
